- Stereo amplifier with 100W x 2 @ 2-Ohms RMS power rating (50W x 2 @ 4-Ohms RMS; 200W x 1 @ 4-Ohms bridged RMS)
- Perfect for driving coaxial speakers and/or one 4-ohm SVC subwoofer
- 4 Gauge power/ground terminals
- MOSFET output stage and power supply
- One-year limited warranty
Rockford Fosgate 200 Watt Stereo amplifer with on-board adjustable crossover, gain control, and Patented Punch EQ. Amplifier features DTM Thermal management circuitry and MOSFET technology for clean performance that does not shut down. CEA Certified RMS Power Rating 50 watts x2 @ 4 Ohms, 100 watts x2 @ 2 Ohms, 200 watts x1 @ 4 Ohms Briged. Visit www.RockfordFosgate.com 24 hours a day for technical support or call (800)669-9899 M-F 7 am to 5 pm MST.The P200-2 is a solid choice if you’re looking to drive coaxial speakers and/or one 4-ohm SVC subwoofer. With proven PUNCH technology, the P200-2 delivers real Rockford Fosgate power from a small footprint and won’t leave you strapped for cash.
 |
Rockford Fosgate Punch Series Amplification
For over 25 years, Punch amplifiers have set the standard in the car audio amplifier industry and they continue to do so today. It’s the reason that they have become the most popular amplifiers in the world. Each of the Punch family amplifiers reproduce sonic perfection along with impressive power in a compact chassis. |
A solid choice if you’re looking to drive coaxial speakers and/or one 4-ohm SVC subwoofer. Click to enlarge. |
Heavy duty, nickel-plated clamp wire connectors. Click to enlarge. |

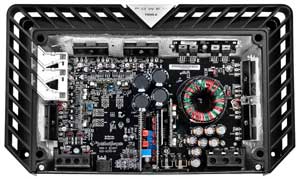

Designed and engineered in the U.S.A. for maximum performance, heat management, and acoustics. Click to enlarge. |
P200-2 Features
- 12dB/octave crossover
- 4 Gauge power/ground terminals
- Audiophile grade speaker connections
- MOSFET output stage
- MOSFET power supply
- Top Mounted LED Indicators
CEA-2006
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier’s output power ratings are REAL POWER numbers, not inflated marketing ratings.
Differential Inputs
Differential input circuitry measures the voltage of both the (+) and (-) input signal. The circuitry subtracts the voltage common to both conductors (noise) resulting in only the clean signal. This allows only clean signal to enter the amplifier.
Discrete Surface Mount
DSM–An industry-leading manufacturing process, DSM utilizes high-speed robotics, high-quality 1% tight-tolerance parts and large board traces. The discrete components are laser etched to meet a particular value and a very low tolerance. This lower tolerance improves the efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature. These superior components are used by aerospace, automotive, and cellular manufacturers.
Dynamic Thermal Management
Heat is often inefficiently dissipated across a heatsink causing “hot spots”. This impacts important design goals which are:
- Keeping internal components cool.
- Maximizing potential of all components.
- Reducing distortion for better sound quality.
- Increasing efficiency to produce more power.
Rockford Fosgate engineers have developed an award winning cooling design called DTM. This patent pending design seamlessly manages the output of power supply temperatures, while evenly distributing the excess heat across the entire amplifier.
MEHSA3
MEHSA3 (Maximum Efficiency Heat Sink Application – gen. 3) is a proprietary process that yields up to five times better heat transfer than traditional FET mounting techniques, using the exact same components. A multi-layer insulated metal substrate operating with minimal thermal resistance spreads heat both downward & outward to quickly dissipate heat from each device across the heatsink. This process combined with our optimized heatsink designs, DSM (Discrete Surface Mount) technology and MOSFET devices, allows Rockford Fosgate to squeeze more watts per cubic inch from every output device as well as provide consistent thermal stability. The 3rd generation creates a dielectric layer between the ceramic topside and the aluminum base that retains all of the electrical isolation and capacitive coupling of the original MEHSA material increasing it’s thermal conductivity. The higher power handling results in a 20% reduction in thermal impedance.
NOMAD
NOMAD is a “real time” analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
Punch EQ2
In the early 70′s, Jim Fosgate studied the acoustical properties of automobiles. Utilizing a real-time analyzer and pink noise, he would graph out the acoustical characteristics of each car he tested. Jim discovered three problems that were common to all cars:
- A midbass hump between 100-275Hz
- A steep roll-off of high frequencies from 2kHz up to 20kHz
- Reduced bass response below 50Hz
The Punch EQ on-board equalization circuit helps correct for these acoustical deficiencies in the listening environment. When set to Low-Pass(LP) operation, it becomes a variable Bass Boost. When set to High-Pass (HP) operation, it acts as a variable Mid-Bass and Treble Boost. When set to All Pass (AP) operation, both Bass and Treble frequencies are boosted.
TO-247 MOSFETs
Rockford Fosgate amps use custom TO-247 MOSFETs. These have 60% more metal tab area for more power capacity, lower impedance and improved heat dissipation over traditional TO-220 MOSFETs found in competitor amps.
TRANS•ana
An award winning studio quality circuit borrowed from the pro audio company Hafler. TRANS-ana is a sound quality circuit that is a standard in the recording industry that simplifies the signal path of the amplifier, allowing the signal to travel through the amplifier at a low voltage. The result: Greater reliability, cleaner performance and exceptional musicality, speed, and durability.
P200-2 Specifications
| Number of Channels: |
2 |
| Rated Power: |
50 Watts RMS x 2 @ 4-Ohms
100 Watts RMS x 2 @ 2-Ohms
200 Watts RMS x 1 @ 4-Ohms Bridged/Mono |
| Total Power: |
200 Watts |
| Dynamic Power: |
74 Watts x 2 @ 4-Ohms 0 degrees Res
131 Watts x 2 @ 2-Ohms 0 degrees Res |
| Bridgeable: |
Yes |
| Efficiency (average): |
68% @ 4-Ohm
62% @ 2-Ohm |
| Crossover Controls: |
High-Pass (HP): 50Hz-500Hz 12dB/octave Butterworth
Low-Pass (LP): 50-500Hz 12dB/octave Butterworth |
| Tone Controls: |
Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Punch EQ2 Treble: 0dB to +12dB @ 12kHz
Function depends upon LP/AP/HP switch position |
| Signal Input: |
Low level: 1 RCA pair |
| Signal Output: |
n/a |
| Power Input Connector: |
Block |
| Power Wire Gauge: |
4 AWG |
| Speaker Output Connector: |
Screw terminal barrier strip |
| Speaker Wire Gauge: |
8 AWG to 18 AWG |
| Heat Sink Type: |
Cast aluminum |
| Cooling: |
Convection |
| Remote Controls: |
n/a |
| Visual Indicators: |
Power
Thermal
Protect |
| Circuit Topology Class: |
Class A/B |
| Frequency Response: |
20Hz to 20kHz +/- 1dB |
| Shipping Weight: |
6.34 Lbs.
(2.87 Kg.) |
| Dimensions (HxWxL): |
2.25 x 7.625 x 9.0 (in)
5.71 x 19.37 x 22.80 (cm) |
Thirty Years of Rockford Fosgate
Rockford Fosgate products have been designed and engineered in Tempe, Arizona since the beginning. Rockford’s 30 year reputation is grounded in engineering and manufacturing some of the finest audio products in the world. The company’s no-compromise approach has yielded patented iconic products such as the Punch EQ, Punch 45 amplifier and the 3Sixty integrated signal processor. Today, Rockford’s new products push the performance envelope even further. Each new product is a step forward–they sound bigger, they play louder, and run longer. Rockford never settles for “good enough.”
The 2010 product line represents the company’s core philosophy. Rockfords new amplifiers, speakers and subwoofers have raised the bar on the competition.
What’s in the Box
Rockford Fosgate Punch P200-2 200-Watt Stereo Amplifier, User’s Manual
